CR way-LV/MV (Plant)

The LS C&S CR-way is available from a low voltage of AC 1000V or less, up to a high voltage of 27kV. It is suitable for current capacities between 630A to 7500A (high voltage product 120e,d5000A).The epoxy resin molding performs as insulation and housing with an IP68 rating.The CR-way is suitable for plants and factories where large capacity of power is required. It is an ideal distribution wiring system for outdoors, humid and dusty areas and any place where chemicals are frequently used.

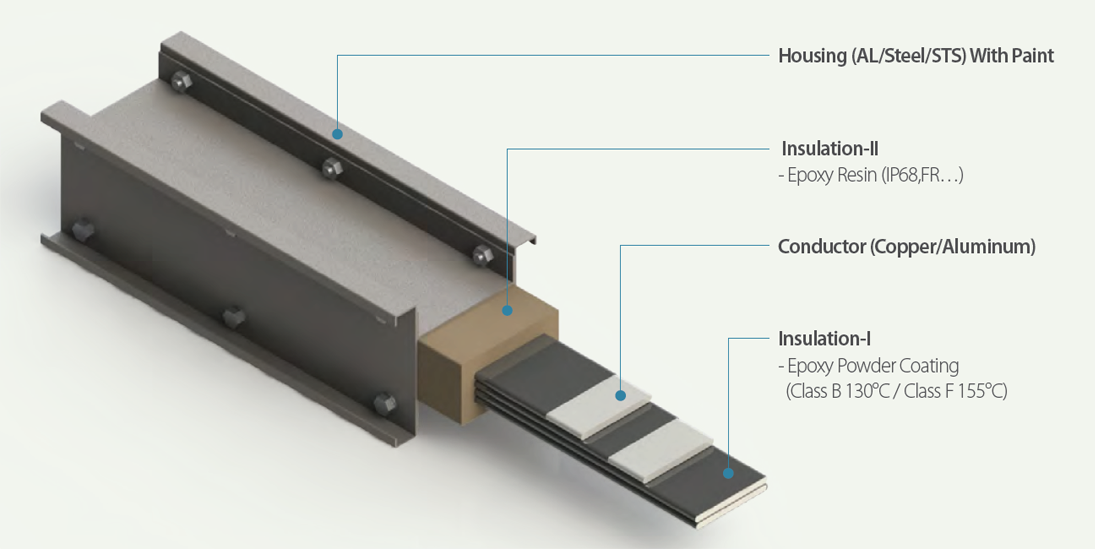

Basic Structure

CR-LV- Ⅱ-consists of conductors insulated using Class B B rated(130℃) epoxy powder coating(Fluidized bed
epoxy; over 500um), metal housing and epoxy resin; thickness over 11mm, molded between the insulated bus
bars and the housing.
Improved waterproof, fireproof, and explosion-proof function, which allows electrical stability and durability
than Sandwich type Busduct.
Improved insulation performance, better impact-resistant, and lightweight which provides easier installation
and better performance to other typical cast resin Busduct without metal housing.

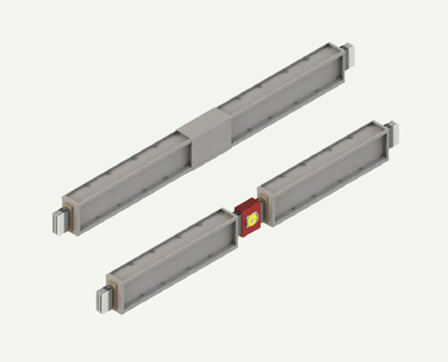

Configuration

Description

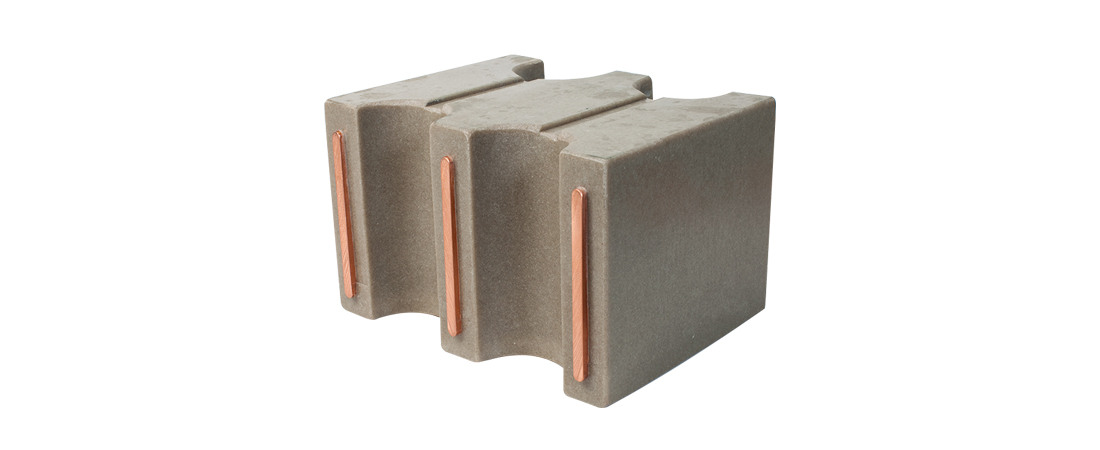

The LS Cable & System CR-way is a product in which insulated epoxy resins are molded at each section to act
as the enclosure. IP68 protection level can be realized. It is a distribution cable system for outdoors, humid and
dusty places, and places frequently exposed to chemical materials.

Applications

• Petrochemical plants
• Marine plants and vessels exposed to salt water
• Underground culverts
